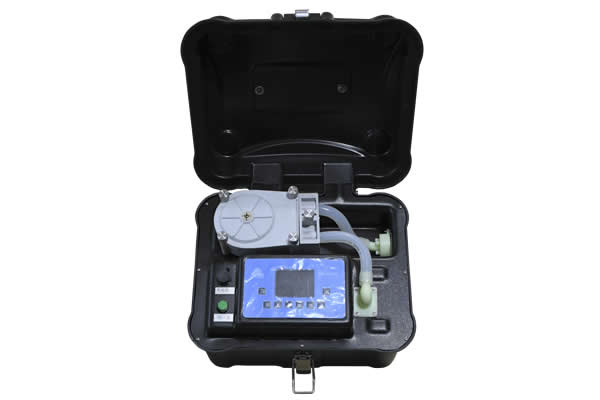

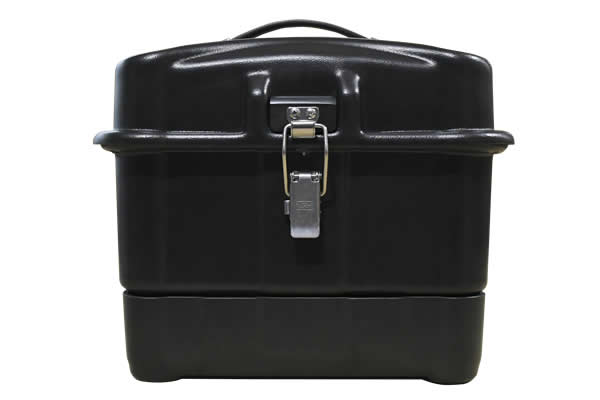

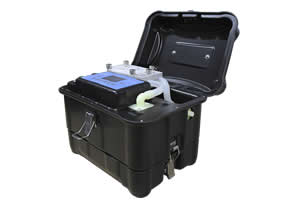

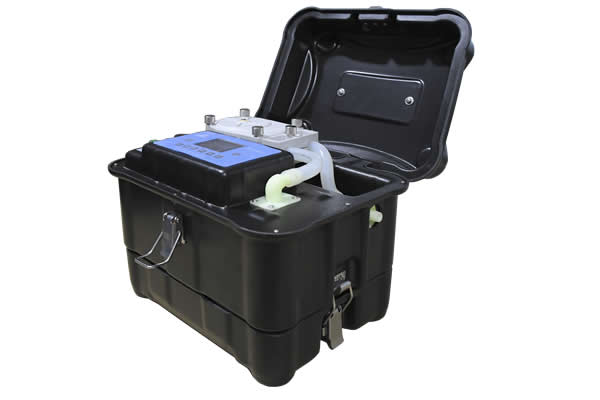

BC-2300 Automatic Portable Water Sampler

Description

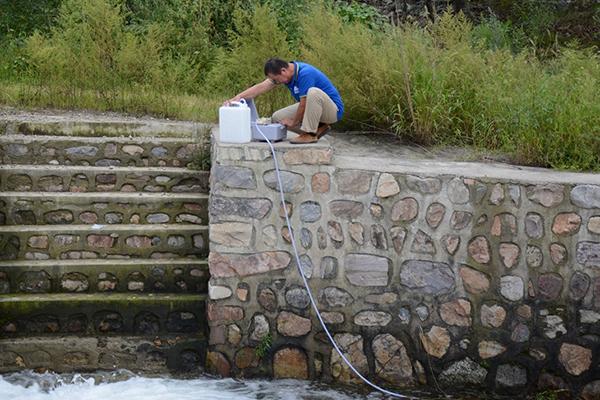

The BC-2300 automatic portable water sampler is environmental monitoring equipment which is designed for surface water and wastewater sampling, water source monitoring, investigation of pollution sources and total quantity control. It adopts an international water sampling method carried out by peristaltic pump which is controlled by SCM (single chip microcomputer). This water sampler can carry out equal proportion or equal time mixed water sampling according to customer requirements. It is mainly used in environment monitoring stations, sanitation and antiepidemic stations, centers of disease control and prevention, colleges and universities and some other conditions which require highly accurate portable water samplers.

Parameters
Water container 5~10L polyethylene barrels
Peristaltic pump flow 3700mL/min
Pump pipe inner diameter 10mm
Sampling volume error ±5%
Sampling repeatability ±5mL
Vertical head 8m
Horizontal suction head 50m
Air-tightness of pipeline system ≤-0.05MPa
Continuous running time ≥3000h/times
Insulation resistance >20MΩ
Working temperature -5℃ ~ +50℃
Power source AC220V±10%/DC12V lithium battery
Power 60W
Dimension 300(L)X290(W)X220(H) mm
Weight 5.5Kg

Performance
1. Sampling method: equal time mixed sampling. This BC-2300 automatic portable water sampler can realize manual and automatic water sampling of which the number of mixed water sample can be set freely from 1~200;

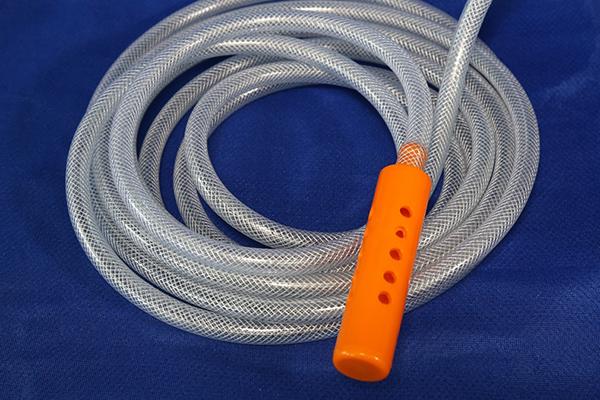

2. Peristaltic pump flow: 3700ml/min, high speed and high flow sewage specific pump; the inner diameter of the pump pipe is 10mm; the pipe is made of high intensity medical silicone tube;
3. Information recording: the water sampler can automatically record and store the sampling data each time;
4. Horizontal suction head: 50m; it has the function of sampling tube automatic washing;
5. Time control error of the system clock of the water sampler: △1≤0.1% and △12≤30S;
6. Power-off protection: this sampler can restart after power-off while all the parameters and data stored will not be lost;
7. Preset program: this equipment can preset and store 10 frequently-used working programs which can be called directly according to the sampling demands;
8. Software lock: only the administrator can use the sampler and modify the parameters in order to protect the built-in program of the equipment from being modified.

Features
1. The BC-2300 automatic portable water sampler has small size, so that it is convenient and portable. The operation is quite simple.
2. It can carry out automatic equal time mixed water sampling.
3. The sampling can be controlled remotely by mobile phone.

Optional units
1. Sampling controlled by mobile phone and DN-100 water sampling bottle kit;
2. Specification: 500mL×12/1000mL×12;
3. Bottle material: fluoroplastics;
4. Kit material: aviation aluminum tool kit;
5. Application: can be matched freely with any type of water sampler.
