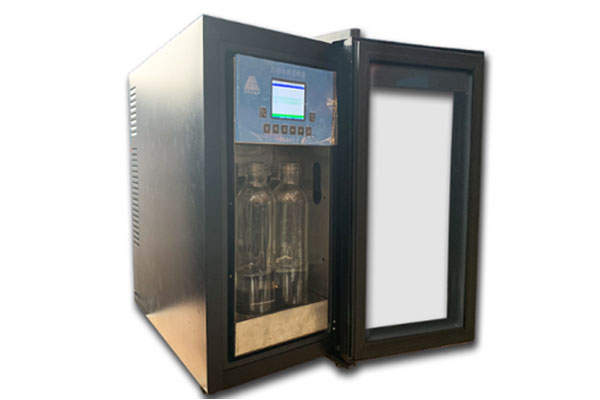

FC-9624YL Mini-automatic Water Sampler

Featuring with 6x500ml sampling bottles, FC-9624YL-mini automatic water sampler is designed for discrete sampling. Its size is only 380mm x 450mm x 470mm. This water sampler is an environmental protection monitor for online automatic sampling of pollution sources.

Application The automatic water sampler is often used by shore water monitoring station / micro-monitoring station. Centrally controlled, it can be integrated with a small unattended water detection cabinet, realizing external control sampling, simultaneous sampling and over-standard sampling.

Parameters
Size 380(W) x 450(D) x 470(H) mm
Weight 16kg
Sampling bottles 6 x 500ml glass bottles
Peristaltic pump flow 3700ml/min
Pump tube diameter 10mm
Sampling volume error 5%
Repeat sampling accuracy ±5ml
Vertical head 8m
Horizontal suction head 50m
Air-tightness of pipeline system ≤-0.08Mpa
MTBF ≥3000h/times
Insulation resistance >20MΩ
Working temperature -5℃ ~ +50℃
System clock time control error △1≤0.1% and △12≤30S
Power source AC220V±10%
Power 230W

Sampling method
1. Standard Sampling
Sampling delay time: 1-9999min with increment of 1min
Time intervals: 1-9999min with increment of 1min
Sampling volume: 10~500ml with increment of 1ml

2. Mixed Sampling
Sampling delay time: 1-9999min with increment of 1min
Time intervals: 1-9999min with increment of 1min
Sampling volume: 10~500ml with increment of 1ml
Composite sampling number: 1~20

3.Parallel Sampling
Sampling delay time: 1-9999min with increment of 1min
Time intervals: 1-9999min with increment of 1min
Sampling volume: 10~500ml with increment of 1ml
Parallel sampling number: 1~6

4. Flowmeter Control Sampling
Optional specific flow meter control, any setting of 1-9999 cube with increment of 1cube

5. Output Pulse Flowmeter Control Sampling
Flowmeter with output pulse to control sampling, any setting of 1-9999 pulse with increment of 1 pulse; The received pulse is a passive pulse, and the closing time is greater than 1 second.

Performance
1. Refrigerated storage function: the water sampling equipment features a refrigerated storage option for the sample, with temperatures adjustable between 1~10°C and controllable within an error of ±2°C.
2. Information recording: the water sampling equipment can automatically record and store the sampling data of each test. It features a sample storage time, as well as recording and labeling functions for excessive parameters.
3. Power-off protection: FC-9624YL-mini water sampler can restart after power-off without losing any stored data. And it can continue its previous programming without going back to the origin.
4. Software lock: only the administrator can use the sampler and modify the parameters in order to protect the built-in program of the equipment from being modified.
5. Pre-filter head: the stainless steel filter screen of the corresponding mesh can be selected according to water quality.

Features
1.The 2.8TFT full color display and intuitive program give access to all programming criteria on a single screen.
2.It is small, refrigerated, and easy to install.
3.Closed electric control door lock: will be closed when power is off, and can only be opened with a key. Automatically save the door opening and closing records and upload it when called by the remote monitoring platform.
4.Sampling shortage alarm: there’s a non-contacted alarm system inside. The sampler will automatically alarm when no water sample is collected.
5.The pump pipe has a large diameter and fast flow speed, thus effectively protecting the pipeline from being blocked.
6.It is controlled by a 32-bit high performance industrial-grade ARM controller. The sampling method, sampling intervals, sampling quantity and storage position can be set freely according to user requirements, as well as carry out synchronous sampling with online monitoring equipment.

Advantages
1.All the performance indicates that the water sampler has the ability to adapt to changes in salinity and turbidity of the water sample of the estuary. There will be no obvious interference or decrease of accuracy.
2.The self-cleaning function of this sampling equipment can be combined with the cleaning function of water sampling and distribution system to achieve long-term running of the whole water monitoring system without fault.
3.The 6 x 500ml sampling bottles can be taken out individually. It is easy to clean.

Factory-installed options
1.Wireless communication module
2.Ultrasonic flow measuring probe (flowmeter function)
3.6 x500ml plastic bottle: there’s sealing valve on the bottom of sampling bottle, allowing for no residue.
